SVG in cfdocument? <img> problems

dev
1

Is it possible to print SVG graphics with cfdocument?

I generally have a lot of problems with images.

Inline images such as the following work:

Images from the server with src=“file:///” also work if attribute localUrl=true

Images with src="http:// or https://… are never printed. Even if they can display in a browser on the webserver.

What am I doing wrong? It worked on my old Coldfusion server…

Thanks,
Allan

2

Here is the related ticket.
https://luceeserver.atlassian.net/browse/LDEV-419

3

workaround, generate images from the svg

1 Like
4

Thank you, but I don’t understand how this 6-year-old ticket is supposed to help me.

5

Thanks, I can also generate PNG directly. But the PDF is about 10 times smaller with SVG, so I would prefer that. Unfortunately, it doesn’t work with PNG either.

The following code:

<cfdocument format="pdf">
	<h1>Welcome to Lucee</h1>
	<h5>Example Page</h5>
	<p>Example for <b>Cfdocument</b></p>
	1<img src="https://dev.moby.ch/img/map.png" width="1191" height="624" alt="">2
</cfdocument>

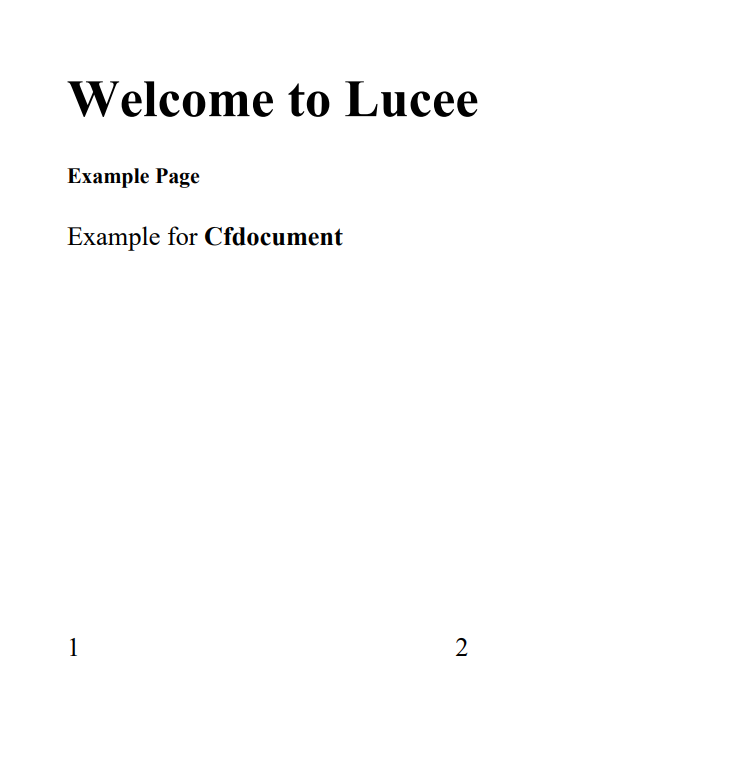

result:

pdf
pdf735×770 17.5 KB

And it doesn’t matter whether it’s PNG, JPG, http, or https—no images are displayed in the PDF.

Any ideas what could be causing this?

Thanks,
Allan

6

Hi all

The image problem seems to be an issue with nslookup. When I move the images to production and adjust the URLs accordingly, they are also printed in the PDF. Now I’m wondering what I need to do to make it work in the dev environment as well. The images are displayed in the browser…

I also found out that SVGs are printed in Classic mode.

Does anyone use a different PDF engine that offers a little more functionality? Perhaps with examples or code to share?

Thanks,
Allan

7

Show us some of your code?

Lucee has a lot of tests, they are a good starting point. Some are under the main repo, extension specific tests are in the extension repo

That said, these tests are mostly headless, i.e. without a webserver, which means these images url issues aren’t covered.

I have been slowly adding additional tests using a webserver for this over on Lucee testlab and specific repos

8

The Code is one comment above…

9

Can your dev server running Lucee access the images? Do a cfhttp request to an image to check.

1 Like
10

@martin you made my day! It’s not the DNS, it’s the certificate. However, I still don’t know how to fix that. At least I noticed when testing with cfhttp that I’m still redirecting everything from http to https, which why http never worked. I could have thought of that earlier. Thanks!

I would also be very grateful for any tips on how to fix the certificate issue.

11

@Schumatech It will depend on what the issue with the certificate is. However, problems are often solved by making sure you are using an up-to-date version of Java. You can also try importing the certificate:

It looks like that will only work with Lucee 5 though.

There is also a section in the admin to install certificates:
Services > SSL Certificates

You may have some luck with these options.
