ImageCopy() result wont be processed by ImageResize()

Hi there, happy to land here and happy to use Lucee for the first time, was a hell of a journey to setup my first linux server. And it was worth it, my app got a gain of like 3000% for some of the calculations involved (images manipulations).

But while porting the app,from ACF to LCF, I encountered an issue I’m struggling with:

<cfset myImage=ImageNew(arguments.backgroundImage)>
<cfset ImageResize(myImage,33,33,'highestQuality',1)> --> OK!
<cfset drawnzone = ImageCopy(myImage,qr.x+arguments.w,qr.y+arguments.w,qr.w,qr.w)>
<cfset ImageResize(drawnzone,33,33,'highestQuality',1)> --> ERROR

I import in a function a PNG image → MyImage is set with it
If I try resizing it, no issues.
Then I’m able to extract a rectangle of it in ‘drawzone’. dumping it shows the very same information for both ‘in memory’ pictures except of course firn height and width. And both images display properly in the dump.
But if I try to apply the same resizing line to the ‘copy’, I get this:

Lucee 5.3.2.77 Error (java.lang.IllegalArgumentException)
Message	Unknown image type 0
Stacktrace	The Error Occurred in
/var/www/html/qrcodebox/qrcode.cfc: line 274
272: <cfdump var="#ImageInfo(drawnzone)#">
273: </cfoutput>
274: <cfset ImageResize(drawnzone,arraylen(rows)*1,arraylen(rows)*1,'nearest',1)>	<cfabort>
275: <!--- MODERATE ACCURACY OF THE DETECTION WITH AN ImagePaste --->
276: <cfset ImageResize(drawnzone2,arraylen(rows)*1,arraylen(rows)*1,'highestQuality',1)>

Java Stacktrace	lucee.runtime.exp.NativeException: Unknown image type 0
 	at java.desktop/java.awt.image.BufferedImage.(BufferedImage.java:501)
 	at org.lucee.extension.image.Image.resizeImage(Image.java:1271)
 	at org.lucee.extension.image.Image.resize(Image.java:1314)
 	at org.lucee.extension.image.Image.resize(Image.java:1257)
 	at org.lucee.extension.image.functions.ImageResize.call(ImageResize.java:63)
 	at org.lucee.extension.image.functions.ImageResize.invoke(ImageResize.java:69)
 	at lucee.runtime.functions.FunctionHandlerPool.invoke(FunctionHandlerPool.java:39)
 	at qrcode_cfc$cf.udfCall(/qrcode.cfc:274)
 	at lucee.runtime.type.UDFImpl.implementation(UDFImpl.java:106)
 	at lucee.runtime.type.UDFImpl._call(UDFImpl.java:342)
 	at lucee.runtime.type.UDFImpl.callWithNamedValues(UDFImpl.java:205)
 	at lucee.runtime.ComponentImpl._call(ComponentImpl.java:683)
 	at lucee.runtime.ComponentImpl._call(ComponentImpl.java:578)
 	at lucee.runtime.ComponentImpl.callWithNamedValues(ComponentImpl.java:1946)
 	at lucee.runtime.ComponentSpecificAccess.callWithNamedValues(ComponentSpecificAccess.java:156)
 	at lucee.runtime.ComponentPageImpl.callWDDX(ComponentPageImpl.java:629)
 	at lucee.runtime.ComponentPageImpl.call(ComponentPageImpl.java:189)
 	at lucee.runtime.PageContextImpl._doInclude(PageContextImpl.java:942)
 	at lucee.runtime.PageContextImpl._doInclude(PageContextImpl.java:834)
 	at lucee.runtime.listener.ClassicAppListener._onRequest(ClassicAppListener.java:64)
 	at lucee.runtime.listener.MixedAppListener.onRequest(MixedAppListener.java:43)
 	at lucee.runtime.PageContextImpl.execute(PageContextImpl.java:2409)
 	at lucee.runtime.PageContextImpl._execute(PageContextImpl.java:2399)
 	at lucee.runtime.PageContextImpl.executeCFML(PageContextImpl.java:2374)
 	at lucee.runtime.engine.Request.exe(Request.java:43)
 	at lucee.runtime.engine.CFMLEngineImpl._service(CFMLEngineImpl.java:1037)
 	at lucee.runtime.engine.CFMLEngineImpl.serviceCFML(CFMLEngineImpl.java:983)
 	at lucee.loader.engine.CFMLEngineWrapper.serviceCFML(CFMLEngineWrapper.java:97)
 	at lucee.loader.servlet.CFMLServlet.service(CFMLServlet.java:51)
 	at javax.servlet.http.HttpServlet.service(HttpServlet.java:741)
 	at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:231)
 	at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
 	at org.apache.tomcat.websocket.server.WsFilter.doFilter(WsFilter.java:53)
 	at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
 	at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
 	at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:200)
 	at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:96)
 	at org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:490)
 	at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:139)
 	at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:92)
 	at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:74)
 	at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:343)
 	at org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:408)
 	at org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:66)
 	at org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:836)
 	at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1839)
 	at org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:49)
 	at java.base/java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1128)
 	at java.base/java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:628)
 	at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
 	at java.base/java.lang.Thread.run(Thread.java:834)
 Caused by: java.lang.IllegalArgumentException: Unknown image type 0
 	... 51 more

Timestamp	8/7/19 11:54:42 PM UTC

I read in many places that this bug (?) persist in the java library but found no workaround for LCF. Any idea (I could save and reload the picture but that goes against the idea of solving the issue and also it definitly goes against the great performance :slight_smile:

Thanks!

Firstly, great bug report!

Which version of the image extension are you running?

HI Zac,

Well, excellent question. And thanks!

I moved back from the default installed snapshot to v 1.0.0.21 stable but I’m not sure the first error I encountered before that action was the same one, so, I need to check and get back to you :blush:

Well…With 1.0.0.24 it is going through :slight_smile: So, somehow this was addressed already since the last stable one …

The original error is back though, so I’ll paste it, but before, I’d say I probably need to try replacing cfimage write by a simple cffile write…(Mmm, scratch that.) Anyway, here it is:

Lucee 5.3.2.77 Error (java.io.IOException)
Message	FileStore The specified format has no associated registered ImageCodec.
Stacktrace	The Error Occurred in
/var/www/html/qrcodebox/qrcode.cfc: line 360
358: <!--- <cfset file.g.path="files/0/"><cfset file.g.name="#CreateUUID()#.png"> --->
359: <!--- <cfset storeFile(file.a.name,file.a.path,1)> --->
360: <cfimage source="#myImage#" action="write" destination="#file.a.path##file.a.name#" overwrite="yes">
361: <cfset fileSetAccessMode("#file.a.path##file.a.name#", "777")>
362: <cfimage source="#IsolatedDrawingZone#" action="write" destination="#file.b.path##file.b.name#" overwrite="yes">

Java Stacktrace	lucee.runtime.exp.NativeException: FileStore The specified format has no associated registered ImageCodec.
 	at javax.media.jai.JAI.createNS(JAI.java:1091)
 	at javax.media.jai.JAI.create(JAI.java:977)
 	at javax.media.jai.JAI.create(JAI.java:1625)
 	at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
 	at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
 	at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
 	at java.base/java.lang.reflect.Method.invoke(Method.java:566)
 	at org.lucee.extension.image.JAIUtil.create(JAIUtil.java:144)
 	at org.lucee.extension.image.JAIUtil.write(JAIUtil.java:106)
 	at org.lucee.extension.image.Image.writeOut(Image.java:1001)
 	at org.lucee.extension.image.Image.writeOut(Image.java:972)
 	at org.lucee.extension.image.tag.Image.doActionWrite(Image.java:422)
 	at org.lucee.extension.image.tag.Image.doStartTag(Image.java:285)
 	at qrcode_cfc$cf.udfCall(/qrcode.cfc:360)
 	at lucee.runtime.type.UDFImpl.implementation(UDFImpl.java:106)
 	at lucee.runtime.type.UDFImpl._call(UDFImpl.java:342)
 	at lucee.runtime.type.UDFImpl.callWithNamedValues(UDFImpl.java:205)
 	at lucee.runtime.ComponentImpl._call(ComponentImpl.java:683)
 	at lucee.runtime.ComponentImpl._call(ComponentImpl.java:578)
 	at lucee.runtime.ComponentImpl.callWithNamedValues(ComponentImpl.java:1946)
 	at lucee.runtime.ComponentSpecificAccess.callWithNamedValues(ComponentSpecificAccess.java:156)
 	at lucee.runtime.ComponentPageImpl.callWDDX(ComponentPageImpl.java:629)
 	at lucee.runtime.ComponentPageImpl.call(ComponentPageImpl.java:189)
 	at lucee.runtime.PageContextImpl._doInclude(PageContextImpl.java:942)
 	at lucee.runtime.PageContextImpl._doInclude(PageContextImpl.java:834)
 	at lucee.runtime.listener.ClassicAppListener._onRequest(ClassicAppListener.java:64)
 	at lucee.runtime.listener.MixedAppListener.onRequest(MixedAppListener.java:43)
 	at lucee.runtime.PageContextImpl.execute(PageContextImpl.java:2409)
 	at lucee.runtime.PageContextImpl._execute(PageContextImpl.java:2399)
 	at lucee.runtime.PageContextImpl.executeCFML(PageContextImpl.java:2374)
 	at lucee.runtime.engine.Request.exe(Request.java:43)
 	at lucee.runtime.engine.CFMLEngineImpl._service(CFMLEngineImpl.java:1037)
 	at lucee.runtime.engine.CFMLEngineImpl.serviceCFML(CFMLEngineImpl.java:983)
 	at lucee.loader.engine.CFMLEngineWrapper.serviceCFML(CFMLEngineWrapper.java:97)
 	at lucee.loader.servlet.CFMLServlet.service(CFMLServlet.java:51)
 	at javax.servlet.http.HttpServlet.service(HttpServlet.java:741)
 	at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:231)
 	at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
 	at org.apache.tomcat.websocket.server.WsFilter.doFilter(WsFilter.java:53)
 	at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
 	at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
 	at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:200)
 	at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:96)
 	at org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:490)
 	at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:139)
 	at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:92)
 	at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:74)
 	at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:343)
 	at org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:408)
 	at org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:66)
 	at org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:836)
 	at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1839)
 	at org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:49)
 	at java.base/java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1128)
 	at java.base/java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:628)
 	at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
 	at java.base/java.lang.Thread.run(Thread.java:834)
 Caused by: java.io.IOException: FileStore The specified format has no associated registered ImageCodec.
 	... 57 more

Timestamp	8/8/19 2:25:48 AM UTC

I tryed adding format=“jpeg”, jpg, png, no luck neither, same error, f.e:

<cfimage source="#myImage#" format="png" action="write" destination="#file.a.path##file.a.name#" overwrite="yes">

Dumping the image before saving it (and failing) gives this:

colormodel
Struct
Entries: 12
alpha_channel_support
boolean	false
alpha_premultiplied
boolean	false
bits_component
Array
1
number	8
2
number	8
3
number	8
bits_component_1
number	8
bits_component_2
number	8
bits_component_3
number	8
colormodel_type
string	ComponentColorModel
colorspace
string	Any of the family of RGB color spaces
num_color_components
number	3
num_components
number	3
pixel_size
number	24
transparency
string	OPAQUE
height
number	604
metadata
Struct
Chroma
Struct
BlackIsZero
string	TRUE
ColorSpaceType
Struct
name
string	RGB
NumChannels
string	3
Compression
Struct
CompressionTypeName
string	deflate
Lossless
string	TRUE
NumProgressiveScans
string	1
Data
Struct
BitsPerSample
string	8 8 8
PlanarConfiguration
string	PixelInterleaved
SampleFormat
string	UnsignedIntegral
Dimension
Struct
ImageOrientation
string	Normal
PixelAspectRatio
string	1.0
pHYs
Struct
pixelsPerUnitXAxis
string	1
pixelsPerUnitYAxis
string	1
unitSpecifier
string	unknown
Transparency	![a|690x460](upload://acpq7dKdfXjALo6UWxaJznpnA7C.jpeg)
Struct
Alpha
string	none
source
string	/var/www/html/qrcodebox/files/uploads/6F1C808B-B376-451A-8911F842E32CF882_b071f62d-b08e-4dd5-aa1c-0ccaad9ad6f6_0_RESIZED.png
width
number	906

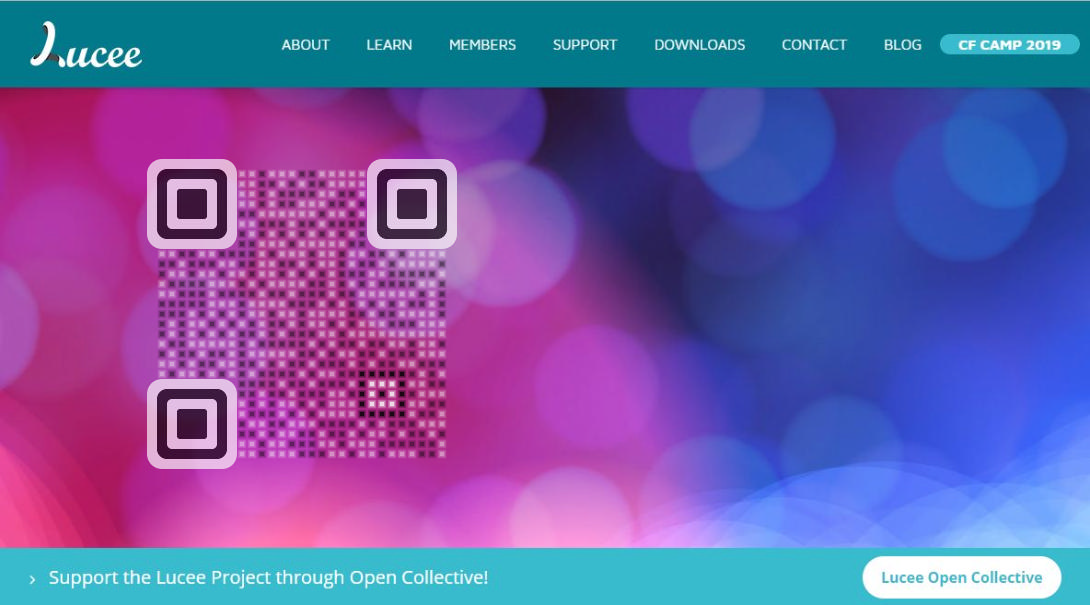

And look like attached (after a Qrcode has been added to it):

To bad I cannot save it except by hacking the dump :-)))

I’ve checked this in lucee 5.3.2.77 and 5.3.4.23 & But I can’t able to reproduce any error while resizing an image after image copy() process. Could you please check with below test file and what I’m missing in this case, Because image resize is working fine for me. And also I’m checking with image extension 1.0.0.21 and 1.0.0.24 versions. But, no luck to reproduce.

test.zip (321 Bytes)

which jvm are you using… not all jvm’s are quite the same

Version Lucee 5.3.2.77


Version Name Gelert
Release date May 27, 2019 Remote IP 127.0.0.1


Servlet Container Apache Tomcat/9.0.20
Java 11.0.3 (AdoptOpenJDK) 64bit
OS Linux (3.10.0-957.27.2.el7.x86_64) 64bit
Architecture 64bit

Thanks for your time @cfmitrah (& @Zackster!),

Here is your test file, it work with both your and my file. But it I try to save it as jpg or jpeg it fails with the same message:

FileStore The specified format has no associated registered ImageCodec.

If though if I’d try with .png, I’ll get a small step further:

FileStore IOException encountered in file creation test: Permission denied

I did not expect that, because file upload was fine, but this is a different folder, so I tested after propagating 775 to files/0 folder… and it fixed it.

So in my case, “FileStore The specified format has no associated registered ImageCodec.” really means
FileStore IOException encountered in file creation test: Permission denied”. Case closed. With many thanks :slight_smile:

Damn, thanks to you I’ve got my first app adjusted (only permissions stuff) and moved under Linux/Lucee, feel free to play with translucid qrcodes ;-):

My own reward to @Zackster & @cfmitrah :slight_smile:

1 Like

thanks!

i think Lucee should be returning an error message which isn’t so cryptic.

such permissions problems can happen and developers get frustrated wasting time trying to track down such a simple problem…

hi everyone,

it seems that this error occurs again…

Lucee: 5.3.4.80
Servlet Container: Apache Tomcat/9.0.31
Java: 11.0.6 (AdoptOpenJDK) 64bit
OS: Linux (3.16.0-4-amd64) 64bit
Image extension (Installed): 1.0.0.27

i tried both 1.0.0.21, 1.0.0.27 as well as various snapshot editions without success…

i noticed that the FileStore The specified format has no associated registered ImageCodec error occurs sometimes, while trying to convert PNG to JPG format. the strange thing is that this not happened with all the PNG files… some are converted, some not !!!

any clue ?

Can you post dumps of Imageinfo () on working and not working example PNG’s?

Hi Zac,

i couldn’t upload the results, so i’m sending them via wetransfer
https://we.tl/t-B0N11Q1myo

the test.cfm.html file contains the imageinfo() results

the first dump is OK
the second raises error

thank you

Great, Can you file a bug in JIRA with all that and the images too?

Please try the new 1.0.0.36-SNAPSHOT for the image extension
https://luceeserver.atlassian.net/browse/LDEV-2698
