Call chained components from mapping

Hi. I do have some hurry on this, so thanks for the help.

I do have a website called website.
In this site I call some cfc stored in other directory called componentesIA.
From website I can call to this CFC by a mapping on the server (servicios_ia) like this: servicios_ia.ai_services.AIProviderFactory

But, the problem begins when AIProviderFactory needs a component in his same or nested directory. Cant find it. For example, AIProviderFactory needs to call GeminiProvider which is stored in a subfolder of the component called ai_services so I need to call like this: ai_services.GeminiProvider.
The component won’t find ai_services because (I think) the context is from the website, not the component.

I try to make an Application.cfc on the component, but it don’t get executed.

How can it be resolved?

Don’t forget to tell us about your stack!

OS: Windows
Java Version: 21
Tomcat Version: ???
Lucee Version: 6

@rodriciru , Please share any test code along with the stack trace so it is easy to trace.

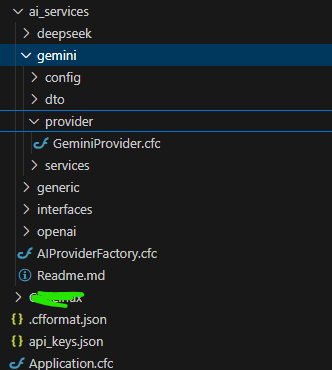

This is the real folder structuture (in the first post i try to simplificate a bit):

This is the website code that calls to the cfc:

aiProviderFactory = new serviciosIA.ai_services.AIProviderFactory();
aiProvider        = aiProviderFactory.createGeminiProvider("xxxxx");

Mapping /serviciosIA points to the Application.cfc directory.

So I can perfectly do the first code line. It works.

But the second line, internally, requires code from ai_services.gemini.provider.GeminiProvider

That won’t work. It won’t find the subdirectory ai_services o make honour of the CFC Application.cfc which defines a mapping per request:
this.mappings["/ai_services"] = expandPath("./ai_services");
CFC Application.cfc is completely ignored at all if you call a cfc of this route (but i can see the compiled version of the Application.cfc on the compiled folder class from server).

The error is :
"could not find component or class with name [ai_services.gemini.provider.GeminiProvider]"

Stack trace:

"lucee.runtime.exp.ApplicationException: could not find component or class with name [ai_services.gemini.provider.GeminiProvider]
	at lucee.runtime.functions.other._CreateComponent.loadClass(_CreateComponent.java:161)
	at lucee.runtime.functions.other._CreateComponent.call(_CreateComponent.java:70)
	at ai_services.aiproviderfactory_cfc$cf.__luceedebug__udfCall(C:\Users\Rodrigo\CosasGit\ProyectosGit\CFLucee_Servicios_IA\ai_services\AIProviderFactory.cfc:39)
	at ai_services.aiproviderfactory_cfc$cf.udfCall(C:\Users\Rodrigo\CosasGit\ProyectosGit\CFLucee_Servicios_IA\ai_services\AIProviderFactory.cfc)
	at lucee.runtime.type.UDFImpl.implementation(UDFImpl.java:112)
	at lucee.runtime.type.UDFImpl._call(UDFImpl.java:357)
	at lucee.runtime.type.UDFImpl.call(UDFImpl.java:224)
	at lucee.runtime.ComponentImpl._call(ComponentImpl.java:722)
	at lucee.runtime.ComponentImpl._call(ComponentImpl.java:595)
	at lucee.runtime.ComponentImpl.call(ComponentImpl.java:2101)
	at lucee.runtime.util.VariableUtilImpl.callFunctionWithoutNamedValues(VariableUtilImpl.java:773)
	at lucee.runtime.PageContextImpl.getFunction(PageContextImpl.java:2075)
	at ia.accionesianoticia_cfc$cf.__luceedebug__udfCall(C:\Users\Rodrigo\CosasGit\ProyectosGit\CFLucee_Gestor_PromecalNews\ia\accionesianoticia.cfc:5)
	at ia.accionesianoticia_cfc$cf.udfCall(C:\Users\Rodrigo\CosasGit\ProyectosGit\CFLucee_Gestor_PromecalNews\ia\accionesianoticia.cfc)
	at lucee.runtime.type.UDFImpl.implementation(UDFImpl.java:112)
	at lucee.runtime.type.UDFImpl._call(UDFImpl.java:357)
	at lucee.runtime.type.UDFImpl.call(UDFImpl.java:224)
	at lucee.runtime.ComponentImpl._call(ComponentImpl.java:722)
	at lucee.runtime.ComponentImpl._call(ComponentImpl.java:595)
	at lucee.runtime.ComponentImpl.call(ComponentImpl.java:2101)
	at lucee.runtime.util.VariableUtilImpl.callFunctionWithoutNamedValues(VariableUtilImpl.java:773)
	at lucee.runtime.PageContextImpl.getFunction(PageContextImpl.java:2075)
	at noticias_ficha_cfm414$cf.__luceedebug__call(C:\Users\Rodrigo\CosasGit\ProyectosGit\CFLucee_Gestor_PromecalNews\Noticias.Ficha.cfm:108)
	at noticias_ficha_cfm414$cf.call(C:\Users\Rodrigo\CosasGit\ProyectosGit\CFLucee_Gestor_PromecalNews\Noticias.Ficha.cfm)
	at lucee.runtime.PageContextImpl._doInclude(PageContextImpl.java:1112)
	at lucee.runtime.PageContextImpl._doInclude(PageContextImpl.java:1006)
	at lucee.runtime.listener.ClassicAppListener._onRequest(ClassicAppListener.java:63)
	at lucee.runtime.listener.MixedAppListener.onRequest(MixedAppListener.java:42)
	at lucee.runtime.PageContextImpl.execute(PageContextImpl.java:2810)
	at lucee.runtime.PageContextImpl._execute(PageContextImpl.java:2797)
	at lucee.runtime.PageContextImpl.executeCFML(PageContextImpl.java:2768)
	at lucee.runtime.engine.Request.exe(Request.java:45)
	at lucee.runtime.engine.CFMLEngineImpl._service(CFMLEngineImpl.java:1109)
	at lucee.runtime.engine.CFMLEngineImpl.serviceCFML(CFMLEngineImpl.java:1066)
	at lucee.loader.engine.CFMLEngineWrapper.serviceCFML(CFMLEngineWrapper.java:97)
	at lucee.loader.servlet.CFMLServlet.service(CFMLServlet.java:42)
	at javax.servlet.http.HttpServlet.service(HttpServlet.java:590)
	at io.undertow.servlet.handlers.ServletHandler.handleRequest(ServletHandler.java:74)
	at io.undertow.servlet.handlers.FilterHandler$FilterChainImpl.doFilter(FilterHandler.java:129)
	at org.cfmlprojects.regexpathinfofilter.RegexPathInfoFilter.doFilter(RegexPathInfoFilter.java:54)
	at io.undertow.servlet.core.ManagedFilter.doFilter(ManagedFilter.java:67)
	at io.undertow.servlet.handlers.FilterHandler$FilterChainImpl.doFilter(FilterHandler.java:131)
	at io.undertow.servlet.handlers.FilterHandler.handleRequest(FilterHandler.java:84)
	at io.undertow.servlet.handlers.security.ServletSecurityRoleHandler.handleRequest(ServletSecurityRoleHandler.java:62)
	at io.undertow.servlet.handlers.ServletChain$1.handleRequest(ServletChain.java:68)
	at io.undertow.servlet.handlers.ServletDispatchingHandler.handleRequest(ServletDispatchingHandler.java:36)
	at runwar.undertow.SSLCertHeaderHandler.handleRequest(SSLCertHeaderHandler.java:161)
	at io.undertow.servlet.handlers.RedirectDirHandler.handleRequest(RedirectDirHandler.java:68)
	at io.undertow.servlet.handlers.security.SSLInformationAssociationHandler.handleRequest(SSLInformationAssociationHandler.java:117)
	at io.undertow.servlet.handlers.security.ServletAuthenticationCallHandler.handleRequest(ServletAuthenticationCallHandler.java:57)
	at io.undertow.server.handlers.PredicateHandler.handleRequest(PredicateHandler.java:43)
	at io.undertow.security.handlers.AbstractConfidentialityHandler.handleRequest(AbstractConfidentialityHandler.java:46)
	at io.undertow.servlet.handlers.security.ServletConfidentialityConstraintHandler.handleRequest(ServletConfidentialityConstraintHandler.java:64)
	at io.undertow.security.handlers.AuthenticationMechanismsHandler.handleRequest(AuthenticationMechanismsHandler.java:60)
	at io.undertow.servlet.handlers.security.CachedAuthenticatedSessionHandler.handleRequest(CachedAuthenticatedSessionHandler.java:77)
	at io.undertow.security.handlers.AbstractSecurityContextAssociationHandler.handleRequest(AbstractSecurityContextAssociationHandler.java:43)
	at io.undertow.server.handlers.PredicateHandler.handleRequest(PredicateHandler.java:43)
	at io.undertow.servlet.handlers.SendErrorPageHandler.handleRequest(SendErrorPageHandler.java:52)
	at io.undertow.server.handlers.PredicateHandler.handleRequest(PredicateHandler.java:43)
	at io.undertow.servlet.handlers.ServletInitialHandler.handleFirstRequest(ServletInitialHandler.java:275)
	at io.undertow.servlet.handlers.ServletInitialHandler.access$100(ServletInitialHandler.java:79)
	at io.undertow.servlet.handlers.ServletInitialHandler$2.call(ServletInitialHandler.java:134)
	at io.undertow.servlet.handlers.ServletInitialHandler$2.call(ServletInitialHandler.java:131)
	at io.undertow.servlet.core.ServletRequestContextThreadSetupAction$1.call(ServletRequestContextThreadSetupAction.java:48)
	at io.undertow.servlet.core.ContextClassLoaderSetupAction$1.call(ContextClassLoaderSetupAction.java:43)
	at io.undertow.servlet.handlers.ServletInitialHandler.dispatchRequest(ServletInitialHandler.java:255)
	at io.undertow.servlet.handlers.ServletInitialHandler.handleRequest(ServletInitialHandler.java:175)
	at io.undertow.server.handlers.HttpContinueReadHandler.handleRequest(HttpContinueReadHandler.java:69)
	at io.undertow.server.handlers.PredicateHandler.handleRequest(PredicateHandler.java:43)
	at runwar.undertow.WelcomeFileHandler.handleRequest(WelcomeFileHandler.java:49)
	at io.undertow.server.handlers.PathHandler.handleRequest(PathHandler.java:104)
	at runwar.undertow.SiteDeployment$1.handleRequest(SiteDeployment.java:169)
	at io.undertow.predicate.PredicatesHandler.handleRequest(PredicatesHandler.java:141)
	at io.undertow.server.handlers.DisallowedMethodsHandler.handleRequest(DisallowedMethodsHandler.java:62)
	at io.undertow.predicate.PredicatesHandler.handleRequest(PredicatesHandler.java:113)
	at io.undertow.server.handlers.encoding.EncodingHandler.handleRequest(EncodingHandler.java:72)
	at runwar.undertow.LifecyleHandler.handleRequest(LifecyleHandler.java:143)
	at runwar.undertow.SiteDeployment$4.handleRequest(SiteDeployment.java:360)
	at io.undertow.server.Connectors.executeRootHandler(Connectors.java:395)
	at io.undertow.server.HttpServerExchange$1.run(HttpServerExchange.java:854)
	at org.jboss.threads.ContextClassLoaderSavingRunnable.run(ContextClassLoaderSavingRunnable.java:35)
	at org.jboss.threads.EnhancedQueueExecutor.safeRun(EnhancedQueueExecutor.java:2019)
	at org.jboss.threads.EnhancedQueueExecutor$ThreadBody.doRunTask(EnhancedQueueExecutor.java:1558)
	at org.jboss.threads.EnhancedQueueExecutor$ThreadBody.run(EnhancedQueueExecutor.java:1449)
	at org.xnio.XnioWorker$WorkerThreadFactory$1$1.run(XnioWorker.java:1282)
	at java.base/java.lang.Thread.run(Thread.java:1583)
Caused by: lucee.commons.lang.ClassException: cannot load class through its string name, because no definition for the class with the specified name [ai_services.gemini.provider.GeminiProvider] could be found
	at lucee.commons.lang.ClassUtil.loadClass(ClassUtil.java:293)
	at lucee.runtime.functions.other._CreateComponent.loadClass(_CreateComponent.java:158)
	... 85 more
Caused by: java.lang.ClassNotFoundException: ai_services.gemini.provider.GeminiProvider
	at lucee.commons.lang.PhysicalClassLoader.loadClass(PhysicalClassLoader.java:282)
	at lucee.commons.lang.PhysicalClassLoader.loadClass(PhysicalClassLoader.java:211)
	at java.base/java.lang.Class.forName0(Native Method)
	at java.base/java.lang.Class.forName(Class.java:534)
	at java.base/java.lang.Class.forName(Class.java:513)
	at lucee.commons.lang.ClassUtil$ClassLoaderBasedClassLoading.loadClass(ClassUtil.java:975)
	at lucee.commons.lang.ClassUtil.__loadClass(ClassUtil.java:444)
	at lucee.commons.lang.ClassUtil._loadClass(ClassUtil.java:428)
	at lucee.commons.lang.ClassUtil.loadClass(ClassUtil.java:270)
	... 86 more
"

Im using CommandBox, i dont know if it matters

Thanks

@rodriciru , The mapping ‘serviciosIA’ is configured at the server level, so it works as expected. However, the problem occurs when the code tries to use the ‘ai_services’ mapping, which is defined in Application.cfc using this.mapping. The mapping defined in Application.cfc is only honored for requests that originate within the application itself, and it is not recognized when accessed via a server-level mapping. Therefore, both ‘serviciosIA’ and ‘ai_services’ mappings should be configured at the server level

In that case, whats the point of defining how to find Application.cfc in server mapping settings?
